VENTILATION

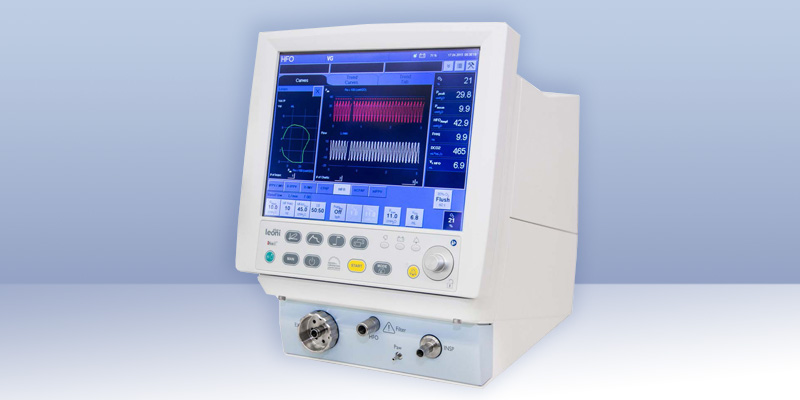

LÖWENSTEIN LEONI Plus
Long-term ventilation
- PSV
- VT trigger adaptation
- Frequency band ranges from 5 to 20 Hz
- Waves and loops
- 12″ TFT multicolour graphic Touch screen
LEONI Plus is suitable for long-term ventilation of very small premature infants, neonates and children weighing up to 30 kg. In addition to the basic ventilation modes CPAP, IPPV/IMV, S-IPPV and SIMV, the device also features two PSV ventilation modes.
In assisted ventilation modes there is a volume-controlled tidal volume guarantee available. The precision hot-wire flow sensor at the patient end allows automatic readjustment of trigger sensitivity relative to the patient’s tidal volume (VT trigger adaptation).
The extremely powerful, integrated high-frequency module LEONI HFO is of the diaphragm type.
All essential settings, readings, alarm limits and graphic information, such as waves and loops, are available at a glance.
In order to expand the range of possible uses LEONI Plus features an integrated battery. This allows off-mains operation for up to 60 minutes in conventional ventilation modes and for up to 30 minutes in HFOV.

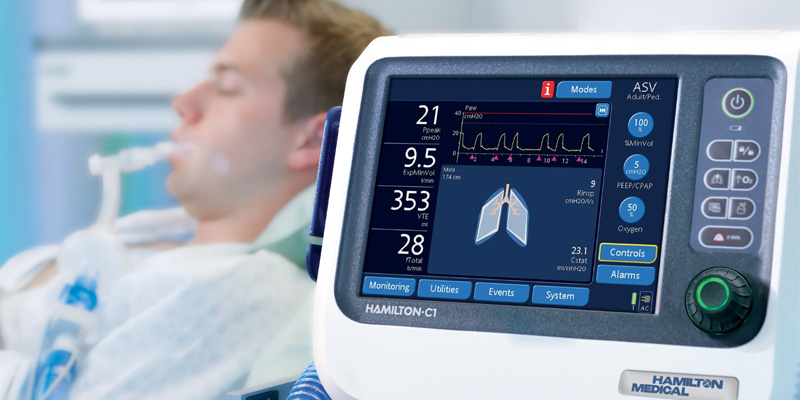

HAMILTON-C1
Minimum size for maximum performance
- Adult, paediatric, and neonatal ventilation
- 4 h of battery operating time
- Independence from gas cylinders or compressors
- Integrated high flow oxygen therapy
- Non-invasive ventilation
Requiring only a minimum of space, the HAMILTON-C1 combines invasive and non-invasive modes as well as high flow oxygen therapy with maximum mobility. This makes it an ideal companion for all patient groups in the intensive care unit, emergency ward, recovery room or intermediate care, long-term acute care facilities, and during intrahospital transport.
The integrated high-performance turbine enables the HAMILTON-C1 to be completely independent from compressed air. In addition, it provides a peak flow rate of up to 260 l/min, guaranteeing optimal performance even in non-invasive ventilation.
The HAMILTON-C1 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV®).

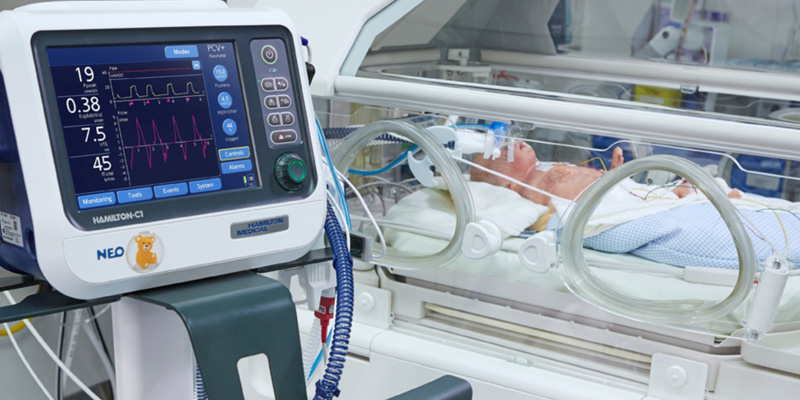

HAMILTON-C1 neo
The breath of life
- State-of-the-art invasive ventilation modes
- Synchronized non-invasive ventilation
- Demand-flow nCPAP modes and high flow oxygen therapy
- Leak compensation in every mode
The HAMILTON-C1 neo is a versatile neonatal ventilator that combines invasive and non-invasive modes with the additional options of nCPAP and high flow oxygen therapy. The integrated turbine allows it to be operated independently of a compressed air supply.
Due to its compact design, it is an ideal companion for your smallest patients in various environments such as delivery room, the intensive care unit and emergency ward, as well as during intrahospital transport.

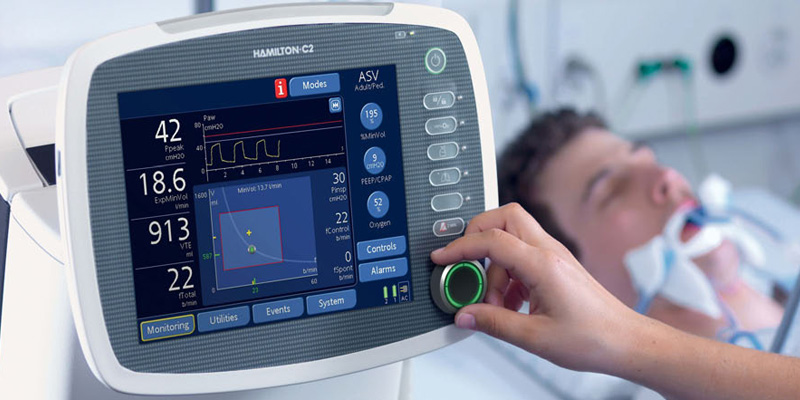

HAMILTON-C2
The universal ventilation solution
- Adult, paediatric, and neonatal ventilation
- Tidal volumes as low as 2 ml
- > 7 h of battery operating time
- Independent air supply
- Advanced ventilation modes including ASV®
- High-performance NIV ventilation
The HAMILTON-C2 mechanical ventilator is a universal ventilation solution for all patient groups. The HAMILTON-C2’s compact design and independence from external power and air supplies allow for maximum mobility throughout the hospital. The integrated high-performance turbine guarantees optimal performance even with non-invasive ventilation.
In the NICU, using the HAMILTON-C2 for volume-targeted ventilation delivers consistent, appropriate tidal volumes as low as 2 ml with the aim of reducing lung damage.
The HAMILTON-C2 provides an extensive monitoring package with a 72-hour trend function.
The HAMILTON-C2 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV).

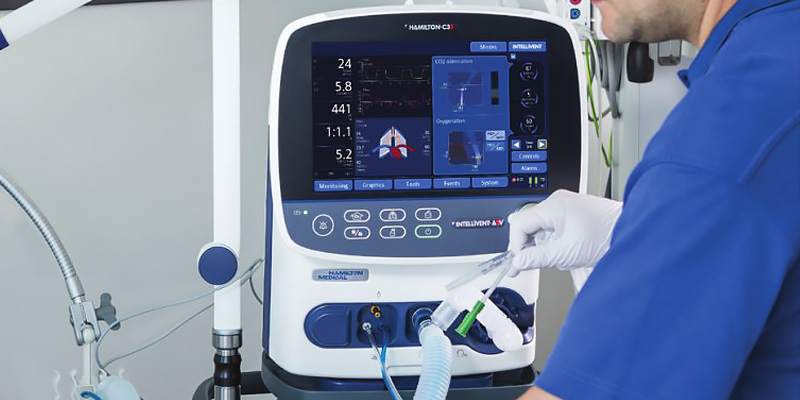

HAMILTON-C3
The compact high-end ventilator
- Advanced ventilation modes including ASV® and INTELLiVENT®-ASV
- Protective Ventilation P/V Tool® Pro for lung assessment and recruitment
- Integrated high flow oxygen therapy
- Adult, paediatric, and neonatal ventilation
The HAMILTON-C3 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation (ASV).
The HAMILTON-C3S edition includes the optional INTELLiVENT-ASV mode. This unique mode takes the proven concepts of ASV one step further: INTELLiVENT-ASV automatically controls the patient's ventilation and oxygenation based on targets set by the clinician and on physiologic input from the patient.
The HAMILTON-C3 includes the optional Protective Ventilation Tool (P/V Tool Pro) to assess recruitability. The P/V Tool also provides an easy and repeatable method for performing recruitment manoeuvres.
The HAMILTON-C3 optionally provides an integrated high flow oxygen therapy mode with a flow of up to 80 l/min.

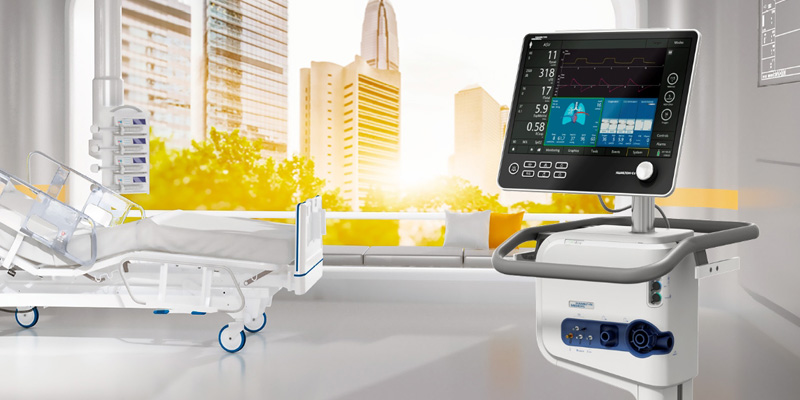

HAMILTON-C6
The next generation of intelligent ICU ventilators
- Independent air supply
- Real-time synchronization with IntelliSync+
- P/V Tool for lung assessment and recruitment
- Transpulmonary pressure measurement
The HAMILTON-C6 represents a new generation of high-end ventilators.
The combination of modularity, ease of use, mobility, and advanced features allows you to personalize your patient's ventilation therapy.
Thanks to the slim line frame, an integrated O2 cylinder carrier, and the high-performance turbine, the HAMILTON-C6 can stay at your patient's side for intrahospital transports.

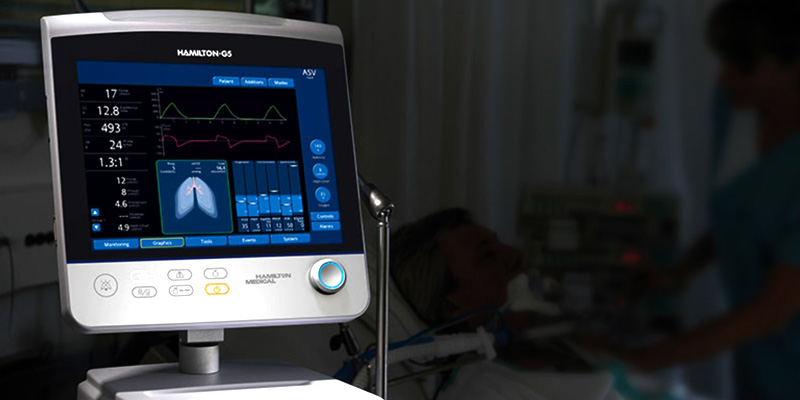

HAMILTON-G5
The modular high-end ventilation solution
- Advanced ventilation modes including ASV®
- Automated cuff pressure controller IntelliCuff®
- Protective Ventilation P/V Tool® for lung assessment and recruitment
- Transpulmonary pressure measurement
- Adult, paediatric, and neonatal ventilation
The HAMILTON-G5 is Hamilton Medical's most modular high-end mechanical ventilator. A large set of standard features and options allow you to tailor the HAMILTON-G5 to your needs. The integrated cuff pressure controller IntelliCuff continuously monitors and automatically adjusts cuffed tracheal and tracheostomy tubes, providing real-time optimization of cuff pressure.
The Protective Ventilation (P/V) Tool provides a repeatable method to assess recruitability and find the best PEEP based on respiratory mechanics, as well as providing an easy and repeatable method for performing recruitment manoeuvres.
The HAMILTON-G5 also supports transpulmonary pressure measurement.
In addition to many other features, the HAMILTON-G5 also includes Hamilton Medical's standardized Ventilation Cockpit user interface and the intelligent ventilation mode, Adaptive Support Ventilation® (ASV).

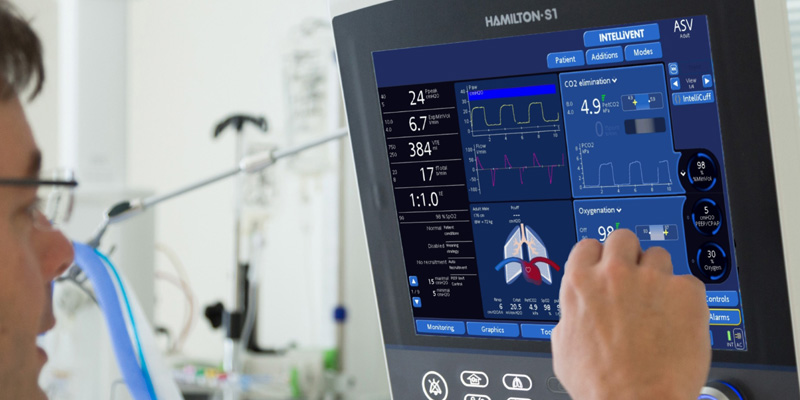

HAMILTON-S1
The world's first Ventilation Autopilot
- Automated control of the patient's ventilation and oxygenation with INTELLiVENT®-ASV®
- Protective Ventilation P/V Tool® for lung assessment and recruitment
- IntelliCuff® automated cuff pressure controller
- Adult, paediatric, and neonatal ventilation
The HAMILTON-S1 is the most advanced mechanical ventilator available today with a number of unique features: It is the first ventilator featuring the "Ventilation Autopilot" INTELLiVENT-ASV. INTELLiVENT-ASV automatically controls the patient's ventilation and oxygenation based on targets set by the clinician and on physiologic input from the patient.
The HAMILTON-S1 also includes the Protective Ventilation (P/V) Tool to assess recruitability and find the best PEEP based on respiratory mechanics, as well as providing an easy and repeatable method for performing recruitment manoeuvres.
The HAMILTON-S1 also includes the unique integrated cuff pressure controller, IntelliCuff. IntelliCuff continuously monitors and automatically adjusts cuffed tracheal and tracheostomy tubes, providing real-time optimization of cuff pressure.
In addition to many other features, the HAMILTON-S1 also includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV).

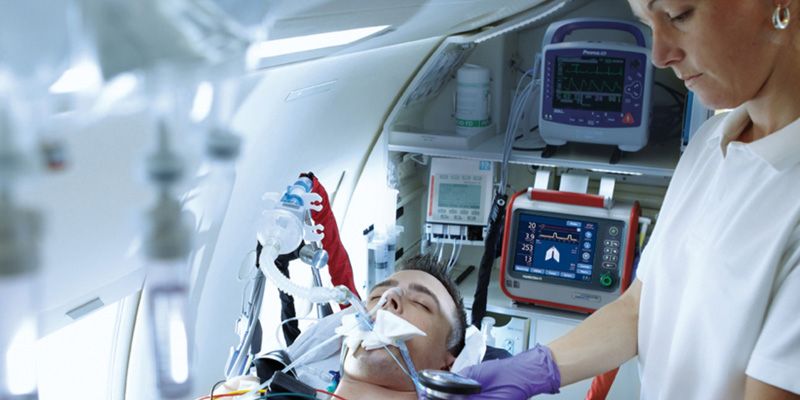

HAMILTON-T1
Intelligent transport ventilation
- Approved for use in ambulances, helicopters and airplanes
- Adult, paediatric, and neonatal ventilation
- > 9 h of battery operating time
- Non-invasive ventilation and integrated high flow oxygen therapy
The HAMILTON-T1 combines for the first time the functionality of a fully featured intensive care unit ventilator with the compactness and ruggedness required for transport.
This is why the HAMILTON-T1 enables you to provide optimal ventilation therapy to all patient groups during transport, from the neonate to the adult.
The integrated high-performance turbine enables the HAMILTON-T1 to be completely independent from compressed air. This reduces weight and saves space, and allows even noninvasively ventilated patients to be transported successfully across greater distances.
The HAMILTON-T1 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV®).

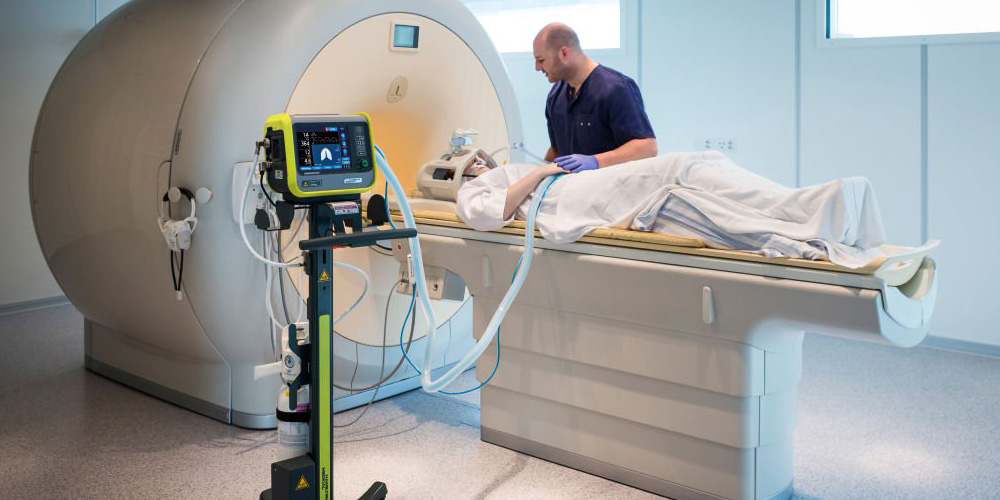

HAMILTON-MR1
Intelligent Ventilation from ICU to MRI
- MR Conditional (up to 50 mT)
- Integrated TeslaSpy gaussmeter
- Adult, paediatric, and neonatal ventilation
- Independent air supply
- Non-invasive ventilation and integrated high flow oxygen therapy
The fully featured ICU ventilator, HAMILTON-MR1, guarantees uncompromised continuous ventilation care from the ICU to the MRI scanner and back. Its reliability and high performance, with advanced lung-protective strategies and patient-adaptive modes, make the HAMILTON-MR1 the ideal choice for any critical care department that needs to transport ventilated patients to the MRI department.
The integrated high-performance turbine enables the HAMILTON-MR1 to be completely independent from compressed air. This reduces weight and saves space during intrahospital transport.
The HAMILTON-MR1 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV®).
