PRODUCTS you can buy at NOVOMED
NOVOMED provides the following product of LÖWENSTEIN medical, HAMILTON Medical, MEDIN, TSE and KLS Martin Group: electrosurgical equipment, surgical laser systems, operating and examination lights, anaesthesia workstations, newborn incubator systems, ventilators, peripheral devices, accessories and consumables.
Electrosurgery
KLS Martin
High-End HF Unit maXium®
This HF unit offers you more than 40 precisely regulated types of current for a great variety of applications in any medical field. The maXium® represents an innovative symbiosis of highly advanced HF technology and a whole range of user-friendly advantages. In particular, it is extremely fast and easy to operate.
KLS Martin

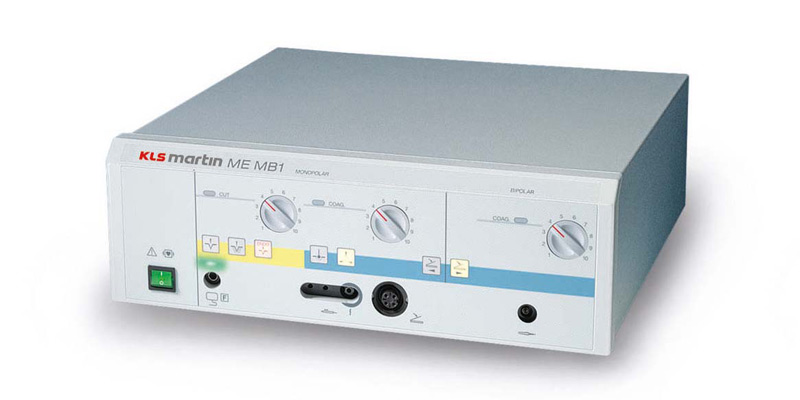

High-End HF Unit ME MB 1 endo
It is not without reason that it is considered a successful classic in the field of endoscopy – the ME MB 1 endo. The hallmarks of this HF unit are its straightforward operating concept and a tremendous price-performance ratio.
KLS Martin

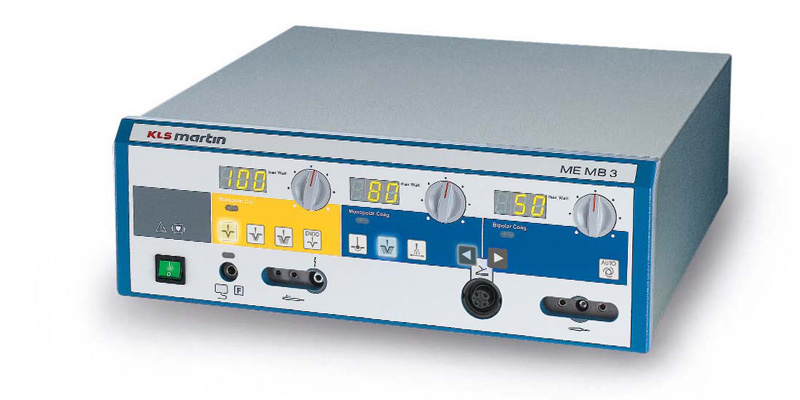

High-End HF Unit ME MB 3
As evidenced by its ergonomic handling, the ME MB 3 utilizes proven technology. Special rotary switches are provided to set the power individually for each operating mode, with the settings indicated on a digital display. The appropriate types of current can be selected easily via dedicated buttons arranged on the membrane keyboard.
KLS Martin
High-End HF Unit ME 411
Boasting 11 different working currents, the ME 411 can be used in any surgical field. In addition to its great versatility, the system offers maximum safety as well – both for users and patients.
Thus, the ME 411 is well equipped to easily meet any demands made on it in modern operating rooms.
KLS Martin
Basic HF Unit ME 102
The compact solution for best results in electrosurgery.
High-frequency surgery in perfection: The ME 102 is a universally applicable HF electrosurgery device of the 100-watt class offering excellent cutting and coagulating capabilities. The unit has been designed to meet all clinical as well as ambulatory requirements – anytime, in any situation.
KLS Martin
Basic HF Unit MD 62
Our smallest solution for highest demands for quality and convenience in dental applications.
The KLS Martin MD 62 is an electrosurgical device primarily intended for use in dentistry. Thanks to its compact design, this unit is extremely handy and therefore well suited for mobile use.
KLS Martin
Basic HF Unit Minicutter
With an output power of 80 watts in monopolar mode and 70 watts in bipolar mode, the Minicutter is simply ideal for use in outpatient departments and private practices. Thanks to its wide range of application including general medicine, dermatology, gynaecology, ENT and cosmetic surgery, the Minicutter is a real all-rounder – just as valuable in clinical settings as in private surgeries.
Excellent ergonomics and easy handling – these are the hallmarks of the Minicutter that make it truly unique. All in all, thanks to a whole range of important features, it offers a maximum of safety in any application.
A special set of accessories is available for the Minicutter. For details, see our product brochure.
KLS Martin
HF Carts
maXium®, maXium® Beamer and maXium® smart Cart – together they form the first class system for open and endoscopic argon plasma surgery.
The maXium® smart Cart exhibits a compact and ergonomic design to securely accommodate the entire equipment.
Our HF Cart represents a practical and convenient solution for all major KLS Martin HF units – and one that saves you lots of money as well.
KLS Martin

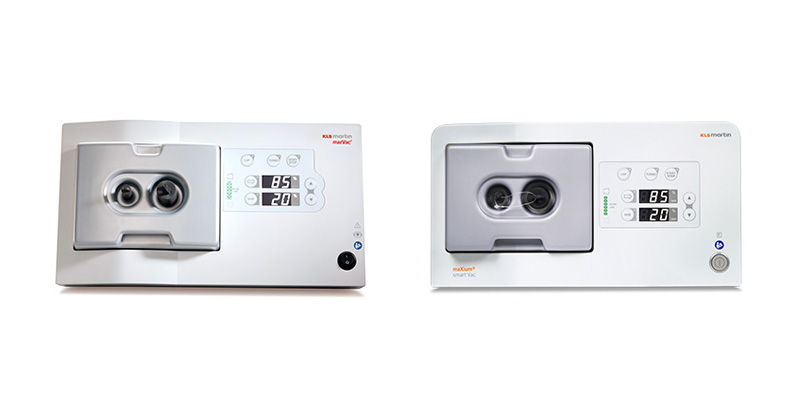

Smoke Evacuator
When using HF surgery devices and laser systems, it is usually impossible to avoid the creation of toxic gases containing viruses, particles or cancerogenic substances.
Responding to the increasing demand for plume-removing devices in recent years, KLS Martin developed its marVAC® smoke evacuator.
marVAC® offers reliable and effective protection as surgical plume is removed directly from the operating site and then filtered and discharged.
KLS Martin Electrosurgical Instruments
KLS Martin also sets new standards on a regular basis with its appealing range of HF accessories.
During the last few years, the product portfolio has been continuously expanded, in particular in the field of bipolar application. Now it comprises a great deal of innovative instruments, such as the marCut® bipolar scissors, the marClamp®, bipolar clamps, the NON-STICK red forceps or the marSeal bipolar sealing instruments.
More on the manufacturer's website »
Surgical Laser Systems
KLS Martin
MCO 25plus & MCO 50plus
With the new MCO 25plus/MCO 50plus CO2 lasers, KLS Martin offers you laser technology at its best. Thanks to their easy-to-understand operating philosophy, excellent optical characteristics and comprehensive, innovative accessories, these CO2 lasers can be used in many fields and for a great variety of indications.
Both laser systems offer users numerous application-specific operating modes, all of which are characterized by utmost precision and an extremely low thermal impact on surrounding tissues. A good example in case is the Superpulse mode with its ultra-short pulse lengths of significantly less than 1 ms.
KLS Martin
Limax®
The Limax® 120 comes as a symbiosis of a solid-state laser and a diode laser: "the two-in-one solution". The innovative, diode-pumped Nd:YAG technology represents a significant step forward, compared with previously available technical options.
With the launch of the Limax® 120, surgeons have a laser system at their disposal that combines the outstanding beam quality and high power densities of solid-state lasers with the high efficiency of diode lasers. All this is heightened by the special wavelength of 1,320 nm, which is just perfect for parenchymal surgery.
KLS Martin
diomax®
The diomax® diode laser satisfies the highest demands regarding the physical properties of the laser beam.
Due to a wide range of application and its easy use and intuitive operation, the diomax® qualifies as a real all-rounder for advanced surgery.
Operating Lights

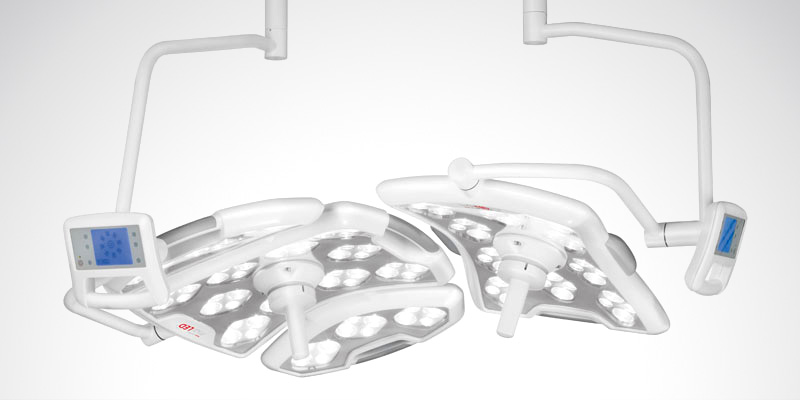

KLS Martin marLED® V10 & marLED® V16
This lighting system consists of the main light marLED® V16 and the satellite light marLED® V10. The two are matched in form to make a perfect whole. The VariLUX feature allows still unrivaled adaptation of the light field to the form of the surgical site. In fact, you can select either a circular or oval light field, depending on anatomical conditions or the operating technique used.

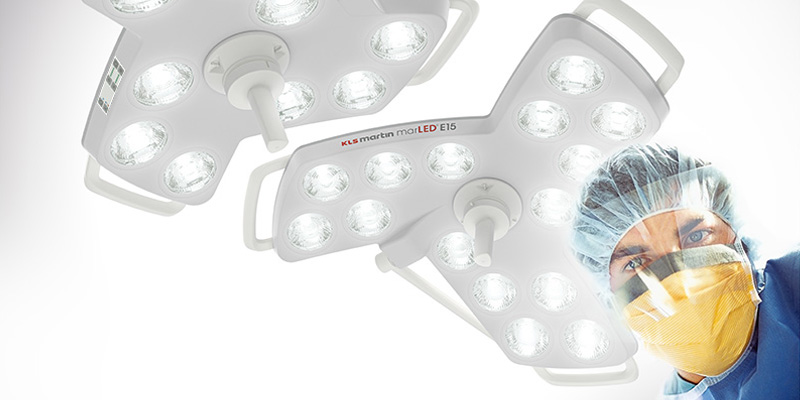

KLS Martin marLED® E15 & marLED® E9i
The marLED® E series by KLS Martin satisfies the highest quality standards. Boasting a new product design, the light offers excellent ergonomic handling and ease of operation. Due to the innovative joining technique, it complies with the highest hygiene standards.
Examination Lights
KLS Martin marLED® E3
It is just as ideal for medical practices as it is for hospitals. It impresses with its slim design. It provides light of unmatched intensity: With the marLED® E3, KLS Martin offers you a real highlight.
Thanks to the use of LEDs, this examination light opens up new possibilities of light and light head design.
KLS Martin marLED® E1
These examination lights bring state-of-the-art LED technology to the field of medical examinations and stand out with high flexibility and good positioning of the light head in day-to-day work environments. With their ergonomic design, these lights make the daily checks and examinations a great deal easier for physicians and the nursing staff.
Whether as a ceiling light, wall light or mobile light, or with an adapter for standard rails, marLED® E1 examination lights help to make work processes as smooth as possible for doctors and care staff, and they can be adapted extremely well to any conditions in the room.
Anaesthesia Workstations
LÖWENSTEIN LEON Basic
Anaesthesia Workstation
This personal anaesthesia workstation combines proven ergonomic design and hygienic concepts with top technology thus providing optimum support for your work, e.g. during the initiation and course of operations, for diagnostic purposes and other relevant hospital systems.
LEON Basic specifications
- Rebreathing ventilation performance up to the standard of an intensive ventilator
- Classical gas mixture via flow tubes
- Pneumatic ventilator drive
- Patient system designed for efficient preparation and most easy assembly
- Absorber change during operation
- Ventilation technology to care for patients of any age
- Ventilation modes: IMV, PCV, Man. Spont.
Optional: SIMV, SPCV, PSV
LÖWENSTEIN LEON
Anaesthesia Workstation
A present-day anaesthesia work station ought no longer provide maximum technical performance but also new and expandable platform concepts. These can be configured according to personal demands. By the development of Leon, LÖWENSTEIN Medical is setting new standards.
LEON specifications
- Rebreathing ventilation performance up to the standard of an intensive ventilator
- Classical gas mixture via flow tubes
- Pneumatic ventilator drive
- Patient system designed for efficient preparation and most easy assembly
- Absorber change during operation
- Ventilation technology to care for patients of any age.
- Ventilations Modes: IMV, SIMV, PCV, Man. Spont.
Optional: SPCV, PSV, HLM
LÖWENSTEIN LEON Plus
Anaesthesia Workstation
Anaesthesia assistance, equipped for example with ventilation performance in back breathing system on the level of an intensive respirator and precise electronic gas mixing in a wide flow range of 200 ml/min to 18 L/min. 15″ colour TFT monitor and gas sensor in various versions.
LEON Plus advanced specifications
- 15’’ coloured TFT touchscreen
- Precise electronic gas mixture in a wide flow range of 200ml/min up to 18 l/min, thus usable from the semi-open to quasi-closed range
- Various gas sensor options can be selected and integrated on the screen, with and without gas identifications
- Optional view of 4 real-time graphs simultaneously
- Monitoring of supply pressures with on-screen display
- Complete data management with trend display
- Pressure-supported spontaneous ventilation PSV (ASSIST)
- Additional safeguard for protection from hypoxic gas mixture settings
- Additional monitoring features optionally available
- Ventilation Modes: IMV, SIMV, PCV, Man. Spont. SPCV, PSV, HLM
Optional: Software upgrade Neonates IMV/SIMV- Mode; PCV/VTG Volume Guarantee Mode
LEON Plus is developed modularly as a genuine platform concept.
This modern anaesthesia assistant can be integrated completely in your specific work environment and trimmed exactly to your personal operations.
LEON Plus NEO
Its individual configurability guarantees maximum comfort and the optimum support during its introduction, in the operating room, during therapy and in every hospital system.
LÖWENSTEIN LEON MRI
Anaesthesia Workstation
The LEON MRI has been specially developed for use in the MRI area with field strengths of up to 40 millitesla. It can be operated on 1.5 tesla and 3.0 tesla MRI systems.
Different coloured alarms and messages indicating the priority can be easily recognized due to LED lights, which are visible from all sides, also outside the MR field.
Power spectrum of the LEON MRI: Both the power spectrum and the operation of the LEON MRI, match exactly, without any restrictions, those of the already well-established LEON.
A further major logistic advantage can be found in the compatibility of the compact circuit system with the LEON plus, LEON and LEON MRI systems. The position to MRI is monitored by an integrated magnetic field strength monitor.
Modular Patient Monitors

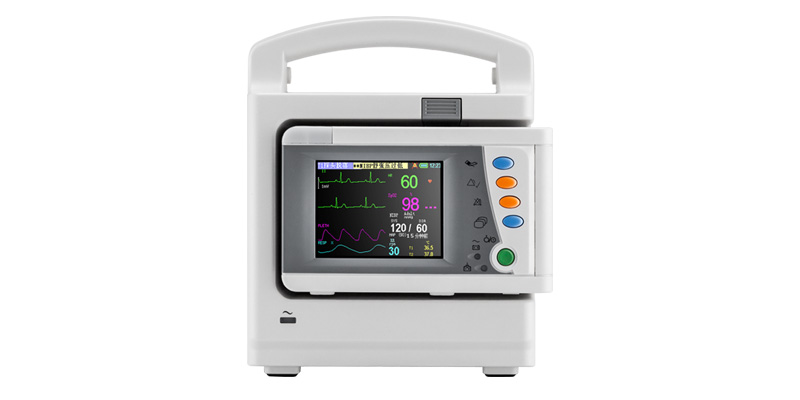

BIOLIGHT AnyView A2E Combined Transport Monitor
- 3.5 inch HD color LCD display, multi-channel waveform display
- Full-screen touch, quick button operation, to facilitate the operation of clinical staff
- Lightweight and portable, with on-board power interface, suitable for on-board monitoring, to meet the 120 ambulance 4 minutes out of the car needs
- With gravity sensing, so that medical staff at any angle to observe the patient’s monitoring data and waveform
- Multi-parameter monitoring module EMS is the carrier of the monitoring data, compatible with all the A series of monitors, to achieve continuous monitoring
- Low-power environmentally friendly fanless design for quiet and clean environment requires a higher
Standard oximetry platform: Masimo Rainbow® SET Pulse CO-Oximetry. Optional Oximetry: Nellcor SpO2, BLT digital SpO2
BIOLIGHT AnyView A3 Modular Patient Monitor
- Integrated plug-in monitor, using the A series of plug-in modules, plug and play
- 8 inch color LCD screen, multi-channel waveform display
- The module is complete, can be any combination: support EMS module box (optional 3/5/12 guide ECG, RESP, NIBP, TEMP, IBP, SpO2), CO2, AG, ICG and other modular box
- Flexible input function: buttons, knobs, touch screen, mouse, keyboard and so on
- Free combination of multi-screen, multi-interface display
- Configurable memory card, trend data is saved
- Configurable recorder, record monitoring data and waveforms
- With a lithium battery, to ensure continuous monitoring
- Machine design compact, lightweight and easy to carry, safe and reliable products, stable performance
Standard oximetry platform: Masimo Rainbow® SET Pulse Oximetry. Optional Oximetry: Nellcor SpO2, BLT digital SpO2
BIOLIGHT AnyView A5 Modular Patient Monitor
- 12-inch color LCD screen, multi-channel waveform display
- Comes with the world’s leading multi-parameter measurement module with a display EMS
- Powerful host, humanized engineering design look
- Up to more than 20 kinds of monitoring parameters, any combination of various modules
- At any time to expand the upgrade, reduce replacement costs
- Provide a variety of input methods, the cumbersome operation procedures greatly simplified
- Fan-less design, dust-free, low power consumption, improve equipment life
- Rotate button operation, optional full-screen touch, easy to operate, support the mouse, keyboard operation
- Independent of the physiological and technical double warning lights, information tips more timely
- Built-in removable rechargeable lithium battery, lightweight, more environmentally friendly energy
- Unique luminous buttons for easy night operation
- External SD memory card, the patient history data for effective storage
Standard model includes EMS1 Module with BLT Digital SpO2, Pulse Rate, ECG (3 or 5 Lead), NIBP
Options:
- Clayton Patient Monitor Wall Mount
- Clayton Mobile Patient Monitor Stand
- Option Oximetry: Nellcor SpO2, Masimo SpO2, EtCO2, Multigas, CO, etc.
BIOLIGHT AnyView A8 Modular Patient Monitor
- 17-inch large screen anti-glare color LCD display, full-screen touch button operation
- Comes with the world’s leading multi-parameter measurement module with a display EMS
- Powerful host, humanized engineering design look
- Can be an independent large-screen display, fast call urgent need to pay attention to life information
- Up to a dozen monitoring parameters, any combination of various modules, at any time to expand the upgrade, reduce replacement costs
- Provide a variety of input methods, the cumbersome operation procedures greatly simplified
- Independent of the physiological and technical double warning lights, information tips more timely
- Built-in removable rechargeable lithium battery, lightweight, more environmentally friendly energy
- Unique luminous buttons for easy night operation
- Independent of the physiological and technical double warning lights, information tips more timely
- External SD memory card, the patient history data for effective storage
Standard oximetry platform: Masimo Rainbow® SET Pulse CO-Oximetry
Options:
- SpO2, PR, PI, Total hemoglobin (SpHb®)
- Oxygen content (SpOC™)
- Carboxyhemoglobin (SpCO®)
- Methemoglobin (SpMet®)
- Pleth Variability Index (PVI®)
Ventilation
LÖWENSTEIN LEONI Plus
Long-term ventilation
- PSV
- VT trigger adaptation
- Frequency band ranges from 5 to 20 Hz
- Waves and loops
- 12″ TFT multicolour graphic Touch screen
LEONI Plus is suitable for long-term ventilation of very small premature infants, neonates and children weighing up to 30 kg. In addition to the basic ventilation modes CPAP, IPPV/IMV, S-IPPV and SIMV, the device also features two PSV ventilation modes.
In assisted ventilation modes there is a volume-controlled tidal volume guarantee available. The precision hot-wire flow sensor at the patient end allows automatic readjustment of trigger sensitivity relative to the patient’s tidal volume (VT trigger adaptation).
The extremely powerful, integrated high-frequency module LEONI HFO is of the diaphragm type.
All essential settings, readings, alarm limits and graphic information, such as waves and loops, are available at a glance.
In order to expand the range of possible uses LEONI Plus features an integrated battery. This allows off-mains operation for up to 60 minutes in conventional ventilation modes and for up to 30 minutes in HFOV.
HAMILTON-C1
Minimum size for maximum performance
- Adult, paediatric, and neonatal ventilation
- 4 h of battery operating time
- Independence from gas cylinders or compressors
- Integrated high flow oxygen therapy
- Non-invasive ventilation
Requiring only a minimum of space, the HAMILTON-C1 combines invasive and non-invasive modes as well as high flow oxygen therapy with maximum mobility. This makes it an ideal companion for all patient groups in the intensive care unit, emergency ward, recovery room or intermediate care, long-term acute care facilities, and during intrahospital transport.
The integrated high-performance turbine enables the HAMILTON-C1 to be completely independent from compressed air. In addition, it provides a peak flow rate of up to 260 l/min, guaranteeing optimal performance even in non-invasive ventilation.
The HAMILTON-C1 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV®).
HAMILTON-C1 neo
The breath of life
- State-of-the-art invasive ventilation modes
- Synchronized non-invasive ventilation
- Demand-flow nCPAP modes and high flow oxygen therapy
- Leak compensation in every mode
The HAMILTON-C1 neo is a versatile neonatal ventilator that combines invasive and non-invasive modes with the additional options of nCPAP and high flow oxygen therapy. The integrated turbine allows it to be operated independently of a compressed air supply.
Due to its compact design, it is an ideal companion for your smallest patients in various environments such as delivery room, the intensive care unit and emergency ward, as well as during intrahospital transport.
HAMILTON-C2
The universal ventilation solution
- Adult, paediatric, and neonatal ventilation
- Tidal volumes as low as 2 ml
- > 7 h of battery operating time
- Independent air supply
- Advanced ventilation modes including ASV®
- High-performance NIV ventilation
The HAMILTON-C2 mechanical ventilator is a universal ventilation solution for all patient groups. The HAMILTON-C2’s compact design and independence from external power and air supplies allow for maximum mobility throughout the hospital. The integrated high-performance turbine guarantees optimal performance even with non-invasive ventilation.
In the NICU, using the HAMILTON-C2 for volume-targeted ventilation delivers consistent, appropriate tidal volumes as low as 2 ml with the aim of reducing lung damage.
The HAMILTON-C2 provides an extensive monitoring package with a 72-hour trend function.
The HAMILTON-C2 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV).
HAMILTON-C3
The compact high-end ventilator
- Advanced ventilation modes including ASV® and INTELLiVENT®-ASV
- Protective Ventilation P/V Tool® Pro for lung assessment and recruitment
- Integrated high flow oxygen therapy
- Adult, paediatric, and neonatal ventilation
The HAMILTON-C3 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation (ASV).
The HAMILTON-C3S edition includes the optional INTELLiVENT-ASV mode. This unique mode takes the proven concepts of ASV one step further: INTELLiVENT-ASV automatically controls the patient's ventilation and oxygenation based on targets set by the clinician and on physiologic input from the patient.
The HAMILTON-C3 includes the optional Protective Ventilation Tool (P/V Tool Pro) to assess recruitability. The P/V Tool also provides an easy and repeatable method for performing recruitment manoeuvres.
The HAMILTON-C3 optionally provides an integrated high flow oxygen therapy mode with a flow of up to 80 l/min.
HAMILTON-C6
The next generation of intelligent ICU ventilators
- Independent air supply
- Real-time synchronization with IntelliSync+
- P/V Tool for lung assessment and recruitment
- Transpulmonary pressure measurement
The HAMILTON-C6 represents a new generation of high-end ventilators.
The combination of modularity, ease of use, mobility, and advanced features allows you to personalize your patient's ventilation therapy.
Thanks to the slim line frame, an integrated O2 cylinder carrier, and the high-performance turbine, the HAMILTON-C6 can stay at your patient's side for intrahospital transports.
HAMILTON-G5
The modular high-end ventilation solution
- Advanced ventilation modes including ASV®
- Automated cuff pressure controller IntelliCuff®
- Protective Ventilation P/V Tool® for lung assessment and recruitment
- Transpulmonary pressure measurement
- Adult, paediatric, and neonatal ventilation
The HAMILTON-G5 is Hamilton Medical's most modular high-end mechanical ventilator. A large set of standard features and options allow you to tailor the HAMILTON-G5 to your needs. The integrated cuff pressure controller IntelliCuff continuously monitors and automatically adjusts cuffed tracheal and tracheostomy tubes, providing real-time optimization of cuff pressure.
The Protective Ventilation (P/V) Tool provides a repeatable method to assess recruitability and find the best PEEP based on respiratory mechanics, as well as providing an easy and repeatable method for performing recruitment manoeuvres.
The HAMILTON-G5 also supports transpulmonary pressure measurement.
In addition to many other features, the HAMILTON-G5 also includes Hamilton Medical's standardized Ventilation Cockpit user interface and the intelligent ventilation mode, Adaptive Support Ventilation® (ASV).
HAMILTON-S1
The world's first Ventilation Autopilot
- Automated control of the patient's ventilation and oxygenation with INTELLiVENT®-ASV®
- Protective Ventilation P/V Tool® for lung assessment and recruitment
- IntelliCuff® automated cuff pressure controller
- Adult, paediatric, and neonatal ventilation
The HAMILTON-S1 is the most advanced mechanical ventilator available today with a number of unique features: It is the first ventilator featuring the "Ventilation Autopilot" INTELLiVENT-ASV. INTELLiVENT-ASV automatically controls the patient's ventilation and oxygenation based on targets set by the clinician and on physiologic input from the patient.
The HAMILTON-S1 also includes the Protective Ventilation (P/V) Tool to assess recruitability and find the best PEEP based on respiratory mechanics, as well as providing an easy and repeatable method for performing recruitment manoeuvres.
The HAMILTON-S1 also includes the unique integrated cuff pressure controller, IntelliCuff. IntelliCuff continuously monitors and automatically adjusts cuffed tracheal and tracheostomy tubes, providing real-time optimization of cuff pressure.
In addition to many other features, the HAMILTON-S1 also includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV).
HAMILTON-T1
Intelligent transport ventilation
- Approved for use in ambulances, helicopters and airplanes
- Adult, paediatric, and neonatal ventilation
- > 9 h of battery operating time
- Non-invasive ventilation and integrated high flow oxygen therapy
The HAMILTON-T1 combines for the first time the functionality of a fully featured intensive care unit ventilator with the compactness and ruggedness required for transport.
This is why the HAMILTON-T1 enables you to provide optimal ventilation therapy to all patient groups during transport, from the neonate to the adult.
The integrated high-performance turbine enables the HAMILTON-T1 to be completely independent from compressed air. This reduces weight and saves space, and allows even noninvasively ventilated patients to be transported successfully across greater distances.
The HAMILTON-T1 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV®).
HAMILTON-MR1
Intelligent Ventilation from ICU to MRI
- MR Conditional (up to 50 mT)
- Integrated TeslaSpy gaussmeter
- Adult, paediatric, and neonatal ventilation
- Independent air supply
- Non-invasive ventilation and integrated high flow oxygen therapy
The fully featured ICU ventilator, HAMILTON-MR1, guarantees uncompromised continuous ventilation care from the ICU to the MRI scanner and back. Its reliability and high performance, with advanced lung-protective strategies and patient-adaptive modes, make the HAMILTON-MR1 the ideal choice for any critical care department that needs to transport ventilated patients to the MRI department.
The integrated high-performance turbine enables the HAMILTON-MR1 to be completely independent from compressed air. This reduces weight and saves space during intrahospital transport.
The HAMILTON-MR1 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV®).
More on the manufacturer's website »
nCPAP Systems
MEDIN medinCNO
Respiratory support for preterm and newborn babies
- nCPAP with nHFV
- Synchronized NIPPV
- Apnea monitoring
- MediTRIG: Integrated trigger without additional sensor
- Leakage compensation
medinCNO is a versatile nCPAP device which is used to provide non-invasive respiratory support to premature infants and newborns. In combination with Medijet®, the compact device is a stand-alone system and meets all requirements for non-invasive nCPAP therapy.
With five modes, medinCNO offers comprehensive non-invasive support in neonatology and is the only nCPAP device with nHFV.
MEDIN medinSINDI
Economical solution for nCPAP
- nCPAP and high-flow
- Spontaneous respiratory rate display
- 5h of operation on battery power
- Pressure and oxygen measurement with alarm
With the nCPAP and high-flow modes, medinSINDI offers a reliable and economical solution for basic NIV therapy of small patients. In combination with the Medijet® generator, medinSINDI measures CPAP pressure and respiratory rate. In addition, alarm functions such as the upper and lower pressure limit and a disconnection alarm offer additional security.
Through the integrated oxygen/compressed air blender, medinSINDI enables precise adjustment of the flow and the oxygen concentration.
MEDIN Medijet
Active nCPAP interface
- Low noise level
- Pressure trigger and spontaneous breath detection without additional sensor
- Flexible adapter for positioning prong and mask
- Patented flextubes for easy application
- Based on the Benveniste valve with volume reservoir
Medijet is an active nCPAP generator and is used on the medin devices medin-NC3®, medinCNO®, medinCNOmini® and medinSINDIn®. In addition, the interface can also be combined with several special ventilators.
Medijet is quieter than comparable nCPAP generators (Kirchner 2012) and features a high level of comfort.
Medijet actively generates CPAP pressure using a modified Benveniste valve (Benveniste 1976), that is, directly in the generator, and thus the continuous positive pressure in the patient’s airway without an additional valve in the NIV device.
As a result, Medijet is connected to the device with only a single-tube system. This facilitates handling and patient positioning.
MEDIN Miniflow
Passive nCPAP interface with continious flow
- Compatible with many ventilators and BubbleCPAP systems
- Minimal dead space
- Flexible adapter for positioning prong and mask
- Patented flextubes for easy application
- Low noise level
Miniflow is an interface for CPAP/NIV therapy using conventional ventilators. The interface is connected with the inspiratory and expiratory branches of the tubing system with the ventilator or flow source.
Combining Miniflow with ventilators enables CPAP therapy and non-invasive ventilation modes such as NIPPV. In this way, the therapy parameters are controlled as usual via the ventilator. As needed, pressure measurement near the patient can be connected to the Miniflow. The single-use interface allows all forms and modes of modern NIV therapy for premature infants and newborns.
You can use Miniflow with a variety of ventilators from various manufacturers. Miniflow is the interface of choice for all devices from Hamilton Medical, Maquet and SLE.
Miniflow uses the same prongs, masks and bonnets as Medijet. We thus offer a complete range of CPAP products from a single source.
MEDIN Nasal Cannulas
Nasal cannula for high flow oxygen therapy
- High degree of patient comfort
- Low noise level and system stagnation pressure
- Individual fixation, gentle to the skin
- Anatomically adapted shape of the prongs
The medin high flow nasal cannula is made out ouf soft and skin compatible silicone which helps to perfectly balance therapy and wearing comfort. Even the smallest cannula size provides flow rates up to 8 LPM and therefore, meet the current knownledge of the application of high flow oxygen therapy in neonatology (Roehr 2016).
Further cannula sizes can be used for babies and infants in combination with a suitable ventilator, for example from Hamilton Medical.
The medin High Flow nasal cannula are compatible with medinCNO®mini, medin-NC3® and medin blender. We recommend the use of a pressure relief valve when using the medin blender.
MEDIN Pediflow
Non-invasive respiratory mask
- Simple adjustment
- Secure fixation
- For infants up to 10 kg
- For the acute phase
- Can be combined with ventilators and bubble CPAP
Pediflow is a mask for non-invasive ventilation for babies aged six to eight months and weighing up to 10 kg. For easy and secure fixation, we have developed a special headgear which can be easily adapted to the head of the small patient.
Pediflow is a single-use product with a good price-performance ratio and it is suitable for ventilators with 2-tube systems.
Pediflow is made of 100% flexible silicone in order to prevent pressure points or damage. For the same reason, the headgear is made in one piece and designed so that it can be optimally adjusted to the patient’s head.
MEDIN Bonnets
- Microfibers ensure a high degree of wear comfort
- Color-coding enables easy size selection
- Secure and stable fixation of the nCPAP interface
Medin bonnets are made of biocompatible microfibers and are individually packaged and available in eight sizes. The particularly soft and elastic material protects the head without deforming it. The fixation bands for prongs and masks attach anywhere to the bonnet and can thus be individually positioned.
The bonnet is the basis for the application of the entire nCPAP system since it ensures the necessary stability.
Mein single-use bonnets have a foam wedge secured in the middle which accommodates the nCPAP generator Medijet or the nCPAP interface Miniflow and effectively reduces the tension which may develop due to the position of the tubing system.
Medin high-quality bonnets can also be reused. They are sewn securely and can be washed up to 100 times at 60°C. The bonnets are individually packaged and available in eight different sizes.
MEDIN Nasal Masks and Binasal Prongs
- High-quality, biocompatible silicone ensures a high degree of wear comfort
- Can be combined with Medijet® and Miniflow®
- Anatomically optimized shape
- Available in different sizes
Medin masks and prongs are suitable for single use in combination with Medijet and Miniflow. Both products are very well tolerated by premature infants and newborns and are equally effective in application.
Medin nasal masks are available in five sizes and feature a high degree of wear comfort. The soft cushion and the anatomical shape minimize skin damage and pressure point. Regularly replacing with binasal prongs additionally ensures regeneration of the skin.
Medin prongs are available in seven different sizes and are made of high-quality silicone. The specially anatomically optimized shape minimizes skin damage and pressure points. Regularly replacing with our nasal masks additionally ensures regeneration of the skin.
The measuring tape assists in the size selection of prongs, masks and bonnets. The optimal fit has a direct effect on the quality of the nCPAP therapy.
Peripheral Devices
HAMILTON-H900
Humidifier
Innovative two-step set up to get you started quickly
- Integrated temperature probe
- Wall-heated, all-in-one breathing circuits
- Adjustable temperature and humidity settings
- Remote control from any compatible ventilator
- Pre-assembled and ready for use
The HAMILTON-H900 humidifier has been developed with focus on ease of use and patient safety allowing caregivers to focus on the important aspects of patient care. It offers an innovative two-step set up to get you started quickly.
All connections on a humidifier are in a single breathing set enabling one-hand operation. Due to the ergonomic design, the user interface can be easily seen and provides all needed information at a glance.
Smoothbore breathing sets with embedded heater wires – available for adults, paediatrics, and even neonates – lead to significantly reduced condensation. This, in turn, ensures the delivery of the set level of humidity to the patient. Thanks to the integrated temperature probe, extra working steps belong to the past.
HAMILTON
IntelliCuff®
Ensuring optimal cuff pressure and patient safety
- Automatic measurement and adjustment of cuff pressure
- Reduced risk of ventilator associated pneumonia (VAP) and tracheal injuries
- Easy and intuitive operation
- For critical care, interhospital transport, and anaesthesia
Continuously optimized and controlled cuff pressure supports ventilation therapy and protects your patients from VAP and tracheal injuries – whether you use IntelliCuff during air transport with quickly changing ambient pressure, or in the operating room for N2O narcosis or laparoscopic abdominal surgery.
IntelliCuff is developed by Hamilton Medical and designed for immediate use; no calibration is required. It operates in a wide but still safe range of desired cuff pressures for various cuffed endotracheal tubes to provide suitable solutions for various clinical situations. You just set the desired cuff pressure, which is then maintained automatically.
HAMILTON
VENTILAIR® II Compressor
A reliable and powerful source of compressed air
- Reliable, durable Swiss design
- Delivers dry, clean medical-grade compressed air
- Optimal cost-performance ratio
- Clear indication of compressor working status
With its superior pressure and flow characteristics, the VENTILAIR II compressor ensures a constant, clean, dry compressed air supply for medical ventilators.
It can be used either as a primary air source or as an automatic backup to a hospital’s central air pipeline system.
An automatic switchover feature provides compressor output to the ventilator without delay when gas pressure falls.
The VENTILAIR II is available for use with all Hamilton Medical ventilators without independent air supply: HAMILTON-G5, HAMILTON-S1, GALILEO, and RAPHAEL or in a mobile version for general-purpose use.
Accessories & Consumables
HAMILTON
Flow Sensors
- High accuracy of tidal volume due to proximal flow measurement
- Specially developed and approved for use with Hamilton Medical ventilators
- Reduced risk of Ventilator Associated Pneumonia (VAP) due to single patient usage
Since 1983, the proximal flow sensor has been the centrepiece of all Hamilton Medical ventilators. It provides you with valuable data from the airway opening, and the whole ventilation process depends on these measurements and their accuracy. Precise volume, flow, and pressure data allow better assessment of the patient’s lung condition. We offer single-use and autoclavable flow sensors for adult, paediatric and neonatal applications.
HAMILTON
Breathing Circuit Sets
- User-friendly as flow sensor, tube, connectors and expiratory valve set are preassembled
- Heated (for HAMILTON-H900 humidifier) and non-heated breathing circuit sets
- Reduced risk of Ventilator Associated Pneumonia (VAP) due to single patient use
We offer preassembled breathing circuit sets with proven manufacturer quality – all sets have been specially developed for Hamilton Medical ventilators. Our single-use and autoclavable breathing circuit sets are available in several different lengths and assemblies – with and without flow sensor and/or expiratory valve – to meet your individual requirements.
HAMILTON
Expiratory Valve Sets
- Specially developed for our ventilators
- Quickly mountable and easy to use
- High patient safety
The valve is one of the key elements of any ventilation system. The Hamilton Medical single-use and autoclavable expiratory valve sets are specially developed for our ventilators.
The main tasks of the expiratory valve sets are to control the respiratory phases and the expiratory pressure, as well as to regulate the PEEP. Their design also prevents internal ventilator components from coming into contact with the patient’s exhaled gas.
HAMILTON
NIV Masks
- Comfortable positioning due to automatic adjustment of the forehead cushion
- Four interchangeable elbows for any clinical use
- Color-coded cord for quick release in emergencies
The Hamilton Medical full face masks offer an optimal fit while minimizing leakage and pressure points. The soft surface and forehead cushion make the mask particularly comfortable to wear. They are intended for spontaneously breathing patients with respiratory insufficiency, who may be subjected to non-invasive ventilation (NIV) with pressure support.
The product portfolio includes a range of masks in three sizes (S, M, L): single use, reusable, vented, and non-vented with or without an emergency outlet.
HAMILTON
High Flow Interfaces
- Extra soft material and comfortable fit
- Highly flexible tube to reduce the risk of kinking
- Elastic and flexible, 360°-adjustable headband
Our ventilators offer high flow oxygen therapy as a software option that is easy to add on.
For our dual and single limb breathing circuit sets we offer high flow nasal cannulas.
HAMILTON
nCPAP Interfaces for Neonates
- High patient comfort due to soft materials and low noise levels
- Optimal fit due to the flexible connection and adjustable adapter
- Masks and bonnets from XXS to XXL
All Hamilton Medical ventilators offer nCPAP (nasal continuous positive airway pressure) modes. You only need to set the desired CPAP pressure and the flow is adjusted automatically based on patient conditions and potential leaks.
This prevents unintended peak pressures, guarantees highly efficient leak compensation, and helps to reduce oxygen consumption.
HAMILTON
Nebulization
- Effective dose of delivery
- Silent operation
- Small particle size
We offer nebulization solutions of AEROGEN®, the world's leading manufacturer and distributor of high performance aerosol drug delivery technology for all patient groups.
HAMILTON
CO2 Measurement
- Mainstream and sidestream
- Reliable measurement
- Comfortable fit
All Hamilton Medical ventilators provide volumetric capnography as either a standard or optional feature.
Mainstream CO2 measurement is performed using a CAPNOSTAT® 5 sensor at the patient’s airway opening.
The LoFlo sidestream sensor is the ideal capnography solution for all CO2 monitoring requirements in non-intubated patients.
HAMILTON
Oxygen Measurement
- Reliable measurement
- Maintenance free with paramagnetic sensor
- For all patient groups
All Hamilton Medical ventilators should operate with an original Oxygen cell from Hamilton Medical, as performance of our ventilators can only be guaranteed when Hamilton Medical Originals are used.
An oxygen cell or paramagnetic O2 sensor monitors the oxygen concentration of the gas to be delivered to the patient – an important, essential function.
The correct operation of the connected oxygen cells is automatically checked at regular intervals by the ventilator’s internal electronics.
