ANAESTHESIA WORKSTATION

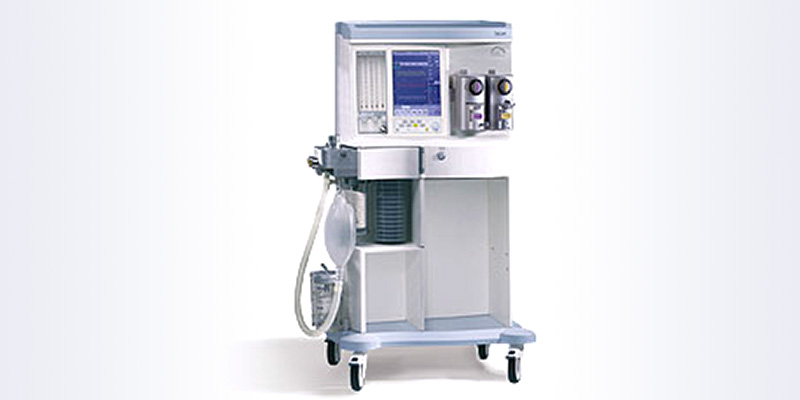

LÖWENSTEIN LEON Basic
Anaesthesia Workstation
This personal anaesthesia workstation combines proven ergonomic design and hygienic concepts with top technology thus providing optimum support for your work, e.g. during the initiation and course of operations, for diagnostic purposes and other relevant hospital systems.
LEON Basic specifications
- Rebreathing ventilation performance up to the standard of an intensive ventilator
- Classical gas mixture via flow tubes
- Pneumatic ventilator drive
- Patient system designed for efficient preparation and most easy assembly
- Absorber change during operation
- Ventilation technology to care for patients of any age
- Ventilation modes: IMV, PCV, Man. Spont.
Optional: SIMV, SPCV, PSV

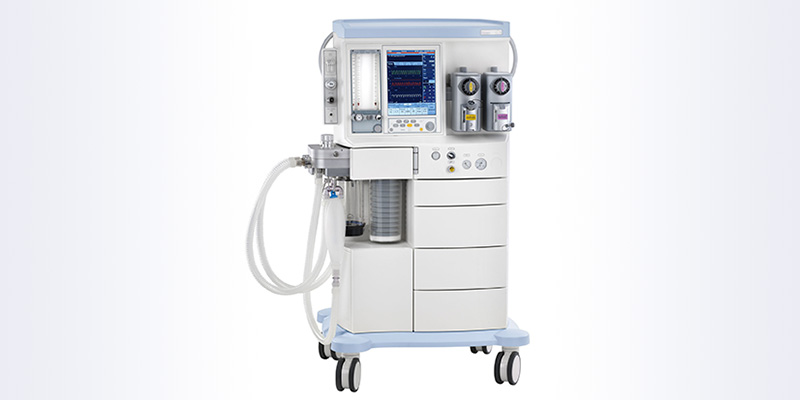

LÖWENSTEIN LEON
Anaesthesia Workstation
A present-day anaesthesia work station ought no longer provide maximum technical performance but also new and expandable platform concepts. These can be configured according to personal demands. By the development of Leon, LÖWENSTEIN Medical is setting new standards.
LEON specifications
- Rebreathing ventilation performance up to the standard of an intensive ventilator
- Classical gas mixture via flow tubes
- Pneumatic ventilator drive
- Patient system designed for efficient preparation and most easy assembly
- Absorber change during operation
- Ventilation technology to care for patients of any age.
- Ventilations Modes: IMV, SIMV, PCV, Man. Spont.
Optional: SPCV, PSV, HLM

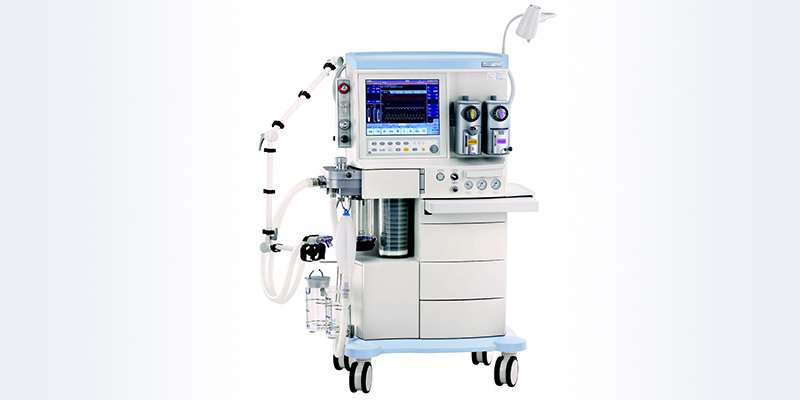

LÖWENSTEIN LEON Plus
Anaesthesia Workstation
Anaesthesia assistance, equipped for example with ventilation performance in back breathing system on the level of an intensive respirator and precise electronic gas mixing in a wide flow range of 200 ml/min to 18 L/min. 15″ colour TFT monitor and gas sensor in various versions.
LEON Plus advanced specifications
- 15’’ coloured TFT touchscreen
- Precise electronic gas mixture in a wide flow range of 200ml/min up to 18 l/min, thus usable from the semi-open to quasi-closed range
- Various gas sensor options can be selected and integrated on the screen, with and without gas identifications
- Optional view of 4 real-time graphs simultaneously
- Monitoring of supply pressures with on-screen display
- Complete data management with trend display
- Pressure-supported spontaneous ventilation PSV (ASSIST)
- Additional safeguard for protection from hypoxic gas mixture settings
- Additional monitoring features optionally available
- Ventilation Modes: IMV, SIMV, PCV, Man. Spont. SPCV, PSV, HLM
Optional: Software upgrade Neonates IMV/SIMV- Mode; PCV/VTG Volume Guarantee Mode
LEON Plus is developed modularly as a genuine platform concept.
This modern anaesthesia assistant can be integrated completely in your specific work environment and trimmed exactly to your personal operations.
LEON Plus NEO
Its individual configurability guarantees maximum comfort and the optimum support during its introduction, in the operating room, during therapy and in every hospital system.

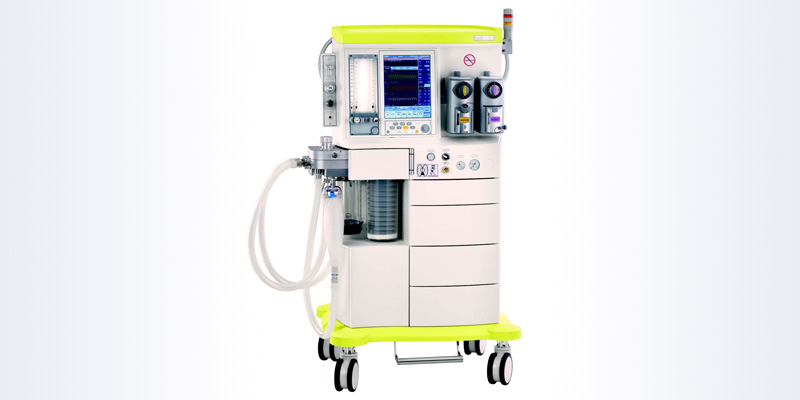

LÖWENSTEIN LEON MRI
Anaesthesia Workstation
The LEON MRI has been specially developed for use in the MRI area with field strengths of up to 40 millitesla. It can be operated on 1.5 tesla and 3.0 tesla MRI systems.
Different coloured alarms and messages indicating the priority can be easily recognized due to LED lights, which are visible from all sides, also outside the MR field.
Power spectrum of the LEON MRI: Both the power spectrum and the operation of the LEON MRI, match exactly, without any restrictions, those of the already well-established LEON.
A further major logistic advantage can be found in the compatibility of the compact circuit system with the LEON plus, LEON and LEON MRI systems. The position to MRI is monitored by an integrated magnetic field strength monitor.
